Are you tired of fumbling with your car stereo while driving? Imagine controlling your music, volume, and calls right from your steering wheel—without taking your eyes off the road.
Connecting your car stereo to your steering wheel controls can make driving safer and more convenient. In this guide, you’ll learn simple, step-by-step ways to set up this connection quickly. Keep reading, and you’ll soon enjoy full control at your fingertips every time you hit the road.
Tools And Materials Needed
Connecting your car stereo to steering wheel controls needs the right tools and materials. Having these ready makes the job easier and safer. It also helps avoid damage to your vehicle’s electrical system. Gather all items before starting the installation to save time and effort.
Essential Tools
- Screwdrivers (Phillips and flathead) for panel removal
- Wire strippers to prepare cables
- Crimping tool to secure wire connectors
- Multimeter to check electrical connections
- Panel removal tool to avoid scratches
- Electrical tape for insulation
- Heat shrink tubing for wire protection
Required Materials
- Steering wheel control interface adapter
- Wiring harness compatible with your car model
- Connectors and terminals for secure joins
- Zip ties to keep wires organized
- Car stereo manual for reference
- Steering wheel control wiring diagram
Preparing Your Car Stereo
Getting your car stereo ready for connection to the steering wheel controls is a crucial step that sets the foundation for a smooth installation. Proper preparation helps avoid common pitfalls and ensures your setup works flawlessly. Let’s look at how to get your stereo ready before diving into the wiring.
Checking Compatibility
Not all car stereos work with steering wheel controls out of the box. You need to verify if your stereo model supports this feature or if you’ll need an additional adapter. Look for compatibility information in the stereo’s manual or on the manufacturer’s website.
Consider the type of connector your vehicle uses for steering wheel controls. Some cars require specific interface modules to communicate between the controls and the stereo. Have you checked if your car’s make and model are listed as compatible with your stereo or any adapters?
Double-checking this can save you time and frustration later on. It also helps to gather any necessary interface modules or wiring harnesses beforehand. This preparation avoids mid-project stops and keeps the momentum going.
Removing The Stereo Unit
Before you can connect anything, you must safely remove the stereo from your dashboard. This step requires care to avoid damaging your car’s interior or the stereo itself. Start by disconnecting the car battery to prevent any electrical issues.
Use the right tools for your car model—usually a panel removal tool and screwdrivers. Gently pry off the dashboard panels surrounding the stereo. If you meet resistance, double-check for hidden screws or clips; forcing the panels can cause damage.
Once the stereo is accessible, carefully unplug all connectors from the back, noting which wires connect where. Taking photos during this process can be a lifesaver when it’s time to reconnect everything. Have you prepared a clean workspace to keep screws and parts organized?
Understanding Steering Wheel Controls
Understanding steering wheel controls is essential before you connect your car stereo. These controls let you manage audio functions without taking your hands off the wheel, making driving safer and more convenient. Knowing what types of controls exist and how their wiring works will save you time and frustration during installation.
Types Of Controls
Steering wheel controls usually include buttons for volume, track selection, phone calls, and voice commands. Some cars also have cruise control and menu navigation buttons integrated into the wheel. Different manufacturers may use different button layouts, but the basic functions are quite similar.
Have you noticed that some buttons feel more responsive or have a distinct click? That’s because they use different types of switches, like resistive or digital signals. Recognizing these differences helps when matching your stereo system to your car’s controls.
Wiring Basics
Wiring steering wheel controls involves connecting specific wires from the car to your stereo’s control interface. Typically, you’ll find wires for ground, power, and signal transmission. Signal wires carry the commands from the buttons to your stereo.
Many modern cars use a CAN bus system, which sends digital signals rather than simple on/off switches. This means you might need a special adapter or interface module to interpret those signals correctly. Have you checked if your car uses CAN bus or traditional wiring? Identifying this early can prevent compatibility issues.
Remember, not all steering wheel control wires are color-coded the same way across vehicles. Using a multimeter or consulting your car’s wiring diagram can clarify which wire does what. Taking these steps ensures a smoother connection and full functionality of your controls.
Connecting The Interface Module
Connecting the interface module is a crucial step to make your steering wheel controls work seamlessly with your car stereo. This module acts as the middleman, translating button presses from your steering wheel into commands your stereo understands. Without it, your controls won’t function properly, so choosing and wiring the right module is key to success.
Selecting The Right Module
Not all interface modules are created equal. You need one that fits your car’s make, model, and year, as well as your stereo system.
Look for modules that specify compatibility with your vehicle and stereo brand. Some modules come with pre-programmed settings, while others allow manual configuration. Think about the features you want, such as volume control, track skipping, or voice command activation.
Have you checked if the module supports firmware updates? This can save you from future compatibility headaches as your stereo system evolves.
Wiring The Module
Proper wiring ensures the interface module communicates correctly with both the steering wheel controls and your stereo. Start by disconnecting your car battery to avoid any electrical shorts.
Follow the wiring diagram that comes with your module carefully. Usually, you’ll connect power, ground, and signal wires to specific points in your car’s wiring harness. Using a multimeter to test connections before finalizing can prevent costly mistakes.
Secure all wires with electrical tape or heat shrink tubing to avoid loose connections. Finally, reconnect the battery and test each button on your steering wheel. Does every control respond as expected? If not, double-check your wiring and module settings.
Integrating With The Car Stereo
Integrating steering wheel controls with your car stereo lets you manage audio without distraction. This process improves driving safety and convenience. The key is to connect the control wires correctly and secure all connections firmly.
Connecting Control Wires

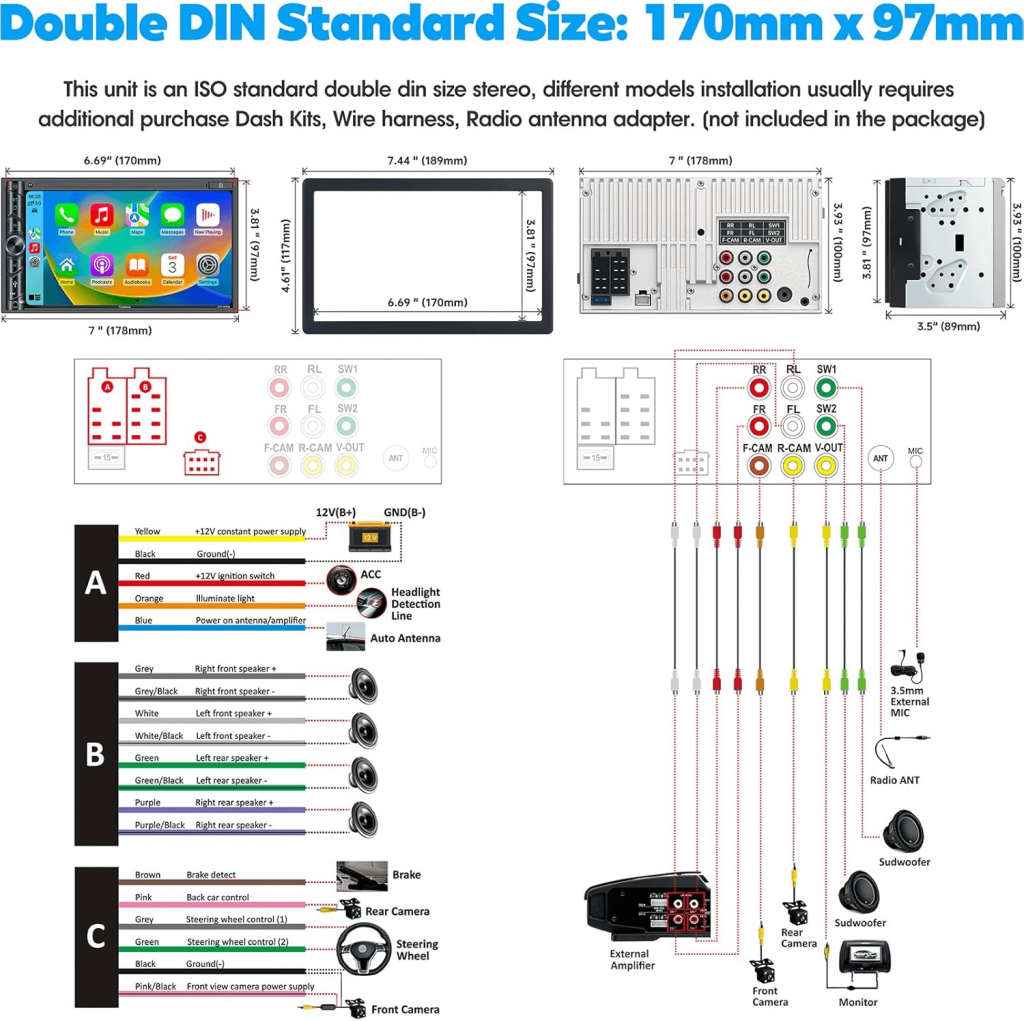

Locate the steering wheel control wires in your car’s wiring harness. Use the stereo wiring diagram to find matching wires on the new car stereo. Connect each control wire from the steering wheel to the corresponding input on the stereo. Usually, these wires have specific colors or labels. Use wire taps or soldering for a solid connection. Avoid loose or weak connections to prevent signal loss.
Securing Connections
After connecting the wires, secure them with electrical tape or heat shrink tubing. This protects the wires from moisture and vibrations. Bundle the wires neatly with zip ties to avoid tangling. Ensure no wires touch sharp metal parts that could cause shorts. Test the steering wheel controls before final assembly to confirm proper function. A secure connection ensures long-lasting and reliable control.
Credit: www.silveradosierra.com
Testing The Connection
After connecting your car stereo to the steering wheel controls, the next important phase is testing the connection. This ensures that the wiring and programming are correctly done and that your controls work smoothly without any glitches. Skipping this step can lead to frustration later, especially when you rely on those buttons for safe driving.
Powering On
Start by turning on your car’s ignition to supply power to the stereo system. Make sure the car stereo itself powers up without any error messages or warning lights. If the stereo doesn’t turn on, double-check your wiring connections and fuses before proceeding.
Once powered, observe the display and listen for startup sounds. These small indicators confirm that the stereo is receiving power and ready to respond to your controls.
Verifying Functionality
Now, test each steering wheel button one by one to confirm they control the stereo functions as expected. Common buttons include volume up/down, track skip, and source selection.
- Press the volume up button and listen for an increase in sound.
- Try the track skip to see if the stereo moves to the next song.
- Use the source button to switch between radio, Bluetooth, and auxiliary input.
If a button doesn’t work, it might be a wiring issue or a setting in the stereo’s menu that needs adjustment. Sometimes, recalibrating the steering wheel control interface in the stereo’s settings can fix this.
Have you considered how seamless control affects your driving experience? Testing thoroughly here saves you from distractions later and helps maintain focus on the road.
Troubleshooting Common Issues
Troubleshooting common issues when connecting your car stereo to steering wheel controls can save you time and frustration. Problems like no response from controls or intermittent functionality often stem from simple wiring mistakes or software settings. Understanding these issues helps you get your system working smoothly without extra trips to the shop.
No Response From Controls
If your steering wheel buttons don’t respond at all, the first thing to check is the wiring connection. Loose or disconnected wires between the control adapter and stereo can cause a complete lack of response.
Also, verify that your stereo’s input settings are configured to accept signals from the steering wheel controls. Some models require you to enable this feature manually in the settings menu.
Have you checked if your adapter is compatible with both your car model and stereo brand? Compatibility issues are a common but often overlooked cause of no response. Testing the adapter with a multimeter can confirm if signals are being transmitted properly.
Intermittent Functionality
When steering wheel controls work sporadically, it’s usually a sign of a loose connection or damaged wiring. Inspect the wiring harness for any visible wear or pinched cables that could interrupt the signal.
Electrical interference from other devices in the vehicle may also disrupt control signals. Try disconnecting other aftermarket electronics temporarily to see if the problem persists.
Software glitches can cause intermittent operation as well. Resetting the stereo or updating its firmware might restore consistent control functionality. Has your stereo’s manual provided any troubleshooting tips specifically for steering wheel controls? Sometimes a simple reset or setting adjustment fixes the issue.
Credit: www.nissanmurano.org
Tips For A Clean Installation
Keeping your installation neat not only makes your car look professional but also helps avoid future troubleshooting. A clean setup saves time and stress when you need to adjust or upgrade your stereo system later. Paying attention to small details during installation can make a big difference in how your steering wheel controls perform and last.
Cable Management
Proper cable management is key to a tidy installation. Use zip ties or Velcro straps to bundle wires together. This prevents cables from dangling or getting caught in moving parts.
Label your wires before connecting them. This simple step helps you quickly identify each cable if you need to fix something later.
Route cables along existing vehicle wiring paths or behind panels to keep them hidden. Avoid stretching cables too tight; leave some slack to prevent damage.
Safety Precautions
Disconnect the car battery before starting any wiring work to avoid electrical shocks or short circuits. This small precaution can save you from costly repairs or personal injury.
Wear insulated gloves if you’re handling live wires. Double-check all connections for secure fits to prevent loose wires that could cause malfunctions.
Test your system before reassembling panels. Have someone help you press steering wheel buttons to ensure everything works correctly and safely.
Credit: www.reddit.com
Frequently Asked Questions
How Do I Connect Steering Wheel Controls To My Car Stereo?
Connecting steering wheel controls to your car stereo involves using an adapter. First, purchase a compatible adapter for your vehicle and stereo. Then, follow the manufacturer’s instructions for installation. This typically involves connecting wires from the adapter to the stereo and vehicle’s wiring harness.
What Tools Are Needed For Installation?
For installation, you’ll need basic tools like screwdrivers, wire strippers, and electrical tape. Depending on your vehicle, you might also need a panel removal tool. Having these tools ready will simplify the process and ensure a smooth installation.
Can I Install Steering Wheel Controls Myself?
Yes, you can install steering wheel controls yourself if you have basic car audio knowledge. Follow the adapter’s instructions carefully. Ensure all connections are secure and properly insulated. If unsure, consult a professional to avoid damaging your car’s electronics.
Are All Steering Wheel Control Adapters Compatible?
No, not all adapters are compatible with every car model and stereo. Check compatibility with your vehicle and stereo before purchasing. Manufacturers usually provide compatibility guides. Ensure the adapter supports the functions you want to control, like volume and track selection.
Conclusion
Connecting your car stereo to steering wheel controls improves driving safety and comfort. It lets you control music and calls without distraction. Follow each step carefully for a smooth setup. Use the right tools and check all connections twice. Testing the system before driving is very important.
Enjoy easier access to your stereo while keeping your focus on the road. This small upgrade makes a big difference in your driving experience.
