Have you ever noticed a dim light on your car stereo that changes when you turn your headlights on? That little glow comes from something called the illumination wire.
But what exactly does this wire do, and why is it important for your car’s audio system? Understanding this simple yet key part can help you make sure your stereo looks great and works smoothly, especially when driving at night.
Keep reading to discover how the illumination wire affects your car stereo and why you should pay attention to it.
Credit: www.g6ownersclub.com
Purpose Of The Illumination Wire
The illumination wire in a car stereo plays a subtle but important role in enhancing your driving experience. It connects the stereo’s display lighting to your vehicle’s dashboard lights, allowing the stereo brightness to adjust automatically. This feature helps maintain visibility without causing distraction, especially during nighttime driving.
Connection To Vehicle Lighting
The illumination wire links your stereo to the vehicle’s lighting system, typically the dashboard or instrument panel lights. When you turn on your headlights or switch to night mode, this wire signals the stereo to dim or brighten its display accordingly.
This connection ensures that your stereo’s display isn’t too bright in the dark or too dim during the day. Have you ever been blinded by a glowing stereo screen at night? The illumination wire prevents that by syncing with your vehicle’s lighting.
Adjusting Stereo Brightness
The illumination wire allows the stereo to adjust its brightness automatically based on external lighting conditions. Instead of manually changing the brightness, your stereo adapts smoothly as you shift from daylight to darkness.
This automatic adjustment not only improves visibility but also reduces eye strain while driving. If you prefer, some stereos let you override this feature, but the illumination wire provides a convenient, hands-free way to keep your display comfortable to look at.
How The Illumination Wire Works
The illumination wire plays a key role in your car stereo’s display. It controls the brightness of the screen and buttons. This wire ensures the stereo lights adjust according to the car’s lighting conditions. Understanding how it works helps you see why it is important for your driving comfort.
Signal Source And Activation
The illumination wire receives power from the vehicle’s lighting system. When the headlights or parking lights turn on, this wire activates. It sends a low voltage signal to the car stereo. This signal tells the stereo to light up or dim its display. Without this connection, the stereo’s illumination stays the same all the time.
Interaction With Dashboard Lights
The illumination wire links the stereo to the dashboard lights. When dashboard lights brighten or dim, the stereo follows the same pattern. This helps keep the car’s interior lighting balanced. It avoids glare during night driving and provides clear visibility during the day. The wire works as a bridge between the stereo and the car’s lighting controls.
Benefits Of The Illumination Wire
The illumination wire in a car stereo offers several key benefits. It helps improve the visibility of the stereo controls in low light. This makes using the stereo easier and safer at night. The illumination wire also enhances the overall look of the car’s interior. It creates a better user experience by making the stereo more attractive and functional.
Improved Visibility At Night
The illumination wire lights up the stereo buttons and display. This makes it easier to see and use the stereo in the dark. Drivers can quickly find the right controls without distraction. It reduces the risk of accidents caused by fumbling with buttons while driving.
Enhanced Aesthetics And User Experience
The soft glow from the illumination wire adds style to the car’s dashboard. It matches the car’s interior lighting for a uniform look. The lit controls feel modern and inviting. This small detail improves comfort and satisfaction during drives, especially at night.
Credit: www.impalassforum.com
Common Issues And Troubleshooting
Dealing with illumination wire issues on your car stereo can be frustrating, especially when it affects your ability to see controls clearly at night. Identifying the root cause of the problem is key to restoring proper function. Below, you’ll find common problems related to the illumination wire and practical tips to troubleshoot them effectively.
Wire Connection Problems
Loose or faulty connections are often the main culprit behind illumination issues. If your stereo’s backlight flickers or doesn’t turn on, check the wire terminals first. A poor connection can cause intermittent lighting or complete failure.
Inspect the illumination wire for any visible damage, like fraying or broken insulation. Sometimes, the wire might not be properly connected to the car’s lighting circuit. In that case, securely reconnecting or replacing the wire can solve the problem.
Have you ever noticed your dashboard lights working fine but the stereo lights staying off? This could mean the illumination wire isn’t linked correctly to the vehicle’s dimmer or lighting control system. Testing continuity with a multimeter can help pinpoint where the break or fault lies.
Brightness Control Malfunctions
Another common issue involves the stereo’s brightness control not responding as expected. If adjusting your car’s dimmer switch doesn’t affect the stereo display light, the problem might be with the illumination wire’s compatibility or the control circuitry.
Sometimes, the illumination wire isn’t designed to interact with your car’s dimmer system, causing a fixed brightness level. Check your stereo’s manual to confirm compatibility. If you find a mismatch, consider adding a resistor or using a different wiring setup to achieve adjustable brightness.
Have you experienced sudden brightness spikes or complete darkness while driving? This might indicate a faulty dimmer switch or a short circuit affecting the illumination wire. Testing the dimmer switch and wiring for faults can prevent more serious electrical issues down the road.
Installation Tips
Getting the illumination wire installed correctly can make a big difference in how your car stereo looks and functions, especially when driving at night. It controls the lighting of your stereo display, dimming or brightening it with your dashboard lights. Proper installation ensures your stereo’s illumination syncs perfectly with your car’s lighting system, enhancing both safety and style.
Identifying The Illumination Wire

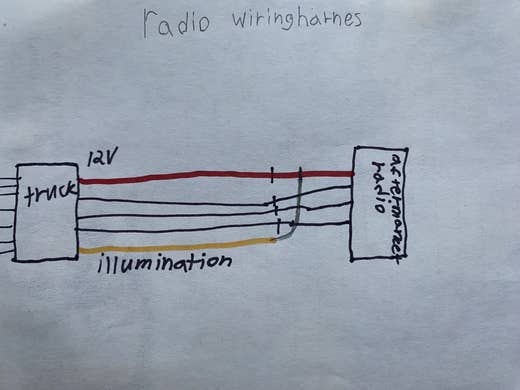

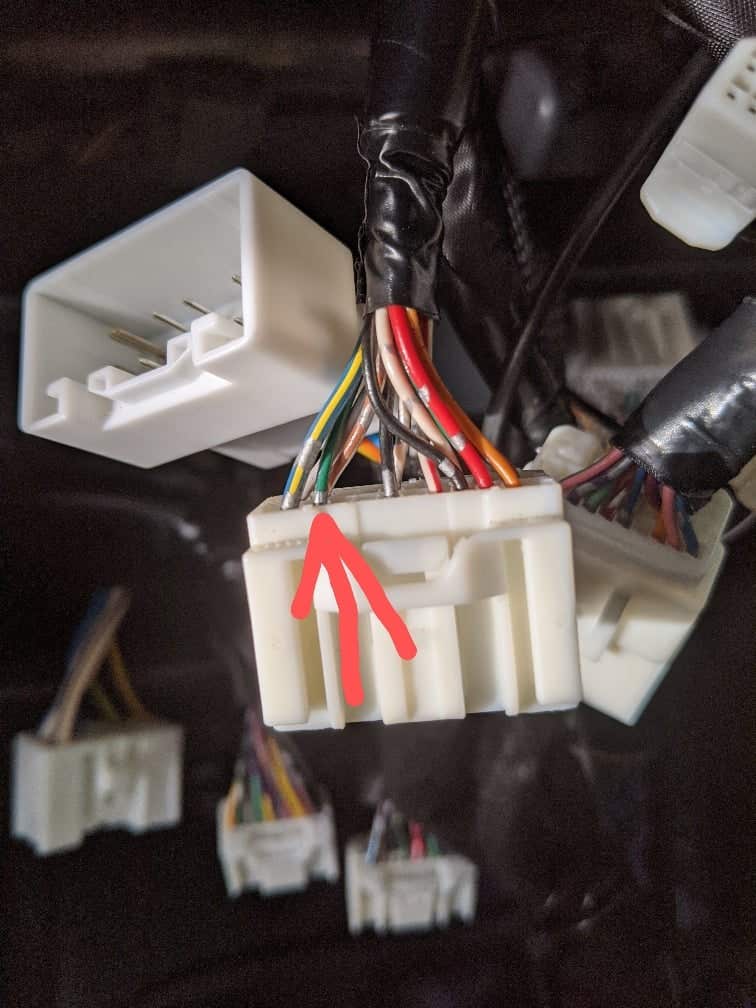

Before you start wiring, you need to find the illumination wire in your vehicle. This wire usually connects to the dashboard lighting circuit and often has a distinct color like orange or orange with a stripe. Checking your car’s wiring diagram or stereo manual can save you from guesswork and prevent damage.
If you don’t have a manual, you can use a multimeter to test wires by turning the headlights on and off. The illumination wire will show voltage only when the dashboard lights are active. Have you ever connected the wrong wire and ended up with a stereo that never dims? Taking time to identify it right avoids that hassle.
Safe Wiring Practices
Safety should be your top priority during installation. Always disconnect the car battery before working with any wiring to avoid shorts or shocks. Use proper connectors like crimp terminals or solder joints instead of twisting wires together for a reliable connection.
Keep wires away from moving parts or hot surfaces to prevent damage over time. Labeling wires with tape can help if you need to troubleshoot later. Have you considered using heat shrink tubing? It adds insulation and protects your connections from moisture and corrosion, making your install last longer.
Compatibility With Different Car Models
Understanding how the illumination wire works with different car models is key to ensuring your stereo lights up correctly with your dashboard. Not all cars use the same wiring colors or configurations, which can lead to confusion during installation. Knowing what to look for can save you time and prevent potential damage.
Variations In Wiring Colors
Car manufacturers don’t follow a universal color code for illumination wires. In some models, the illumination wire might be orange, while in others, it could be brown or even purple. This inconsistency means you can’t rely solely on color to identify the wire.
Have you ever tried connecting your stereo only to find the lights don’t turn on or behave erratically? That’s often because the illumination wire was mixed up with another wire. Using a wiring diagram specific to your car model or a multimeter can help pinpoint the right wire accurately.
Adapting To Aftermarket Stereos
Aftermarket stereos usually have a standard illumination wire color, often orange with a white stripe. When installing one in your car, you might need to connect this wire to your car’s corresponding illumination wire, which could be a different color.
To adapt, you can use a wiring harness adapter designed for your car model. This avoids cutting into the factory wiring and maintains the integrity of your vehicle’s electrical system. If you’re doing it manually, labeling wires and testing connections before finalizing the setup can prevent headaches later.
Credit: www.fjcruiserforums.com
Frequently Asked Questions
What Is The Purpose Of The Illumination Wire In A Car Stereo?
The illumination wire connects the stereo to the car’s lighting system. It dims or brightens the display based on the vehicle’s lighting, improving visibility and reducing glare during night driving.
How Does The Illumination Wire Affect Car Stereo Display?
It adjusts the brightness of the stereo screen according to dashboard lights. When headlights turn on, the display dims automatically for comfortable viewing.
Can A Car Stereo Work Without The Illumination Wire?
Yes, the stereo will function, but the display won’t adjust brightness. This can cause visibility issues, especially during night driving or low-light conditions.
Where Is The Illumination Wire Usually Located In A Car Stereo?
It is typically a thin orange or orange/white wire in the stereo wiring harness. Consult the stereo’s manual for exact identification and proper connection.
Conclusion
Understanding the illumination wire on a car stereo is crucial. It plays a key role in lighting up the display. This wire connects the stereo to the car’s lighting system. When you turn on the lights, it activates the stereo’s backlight.
This ensures clear visibility, especially at night. Proper connection prevents electrical issues. It also enhances your driving experience. Always check the car manual for guidance. Ensure safe and correct installation. Enjoy a well-lit, functional stereo system. Happy driving!
