Where to Connect Acc Wire in Car Stereo: Easy Step-by-Step Guide

Are you trying to upgrade your car stereo but stuck on one simple question: where exactly do you connect the ACC wire? Getting this right is key to making sure your stereo powers up only when your car is on.

If you connect it wrong, you might drain your battery or face annoying wiring issues. Don’t worry—this guide will walk you through the exact spot to hook up your ACC wire, step by step. Keep reading to make your installation smooth and hassle-free!

Acc Wire Basics

The ACC wire in your car stereo setup is a small but crucial component. It controls the power flow to your stereo system, ensuring it only runs when your car’s ignition is on. Understanding the basics of the ACC wire helps you avoid common mistakes and achieve a clean, functional install.

Purpose Of Acc Wire

The ACC wire acts as a switch for your car stereo. It sends power to the stereo only when the ignition key is turned to the accessory position.

This means your stereo won’t drain the battery when the car is off. Without connecting the ACC wire properly, you might face issues like the stereo turning off unexpectedly or not powering on at all.

Have you ever wondered why your stereo shuts off the moment you remove the key? That’s the ACC wire doing its job.

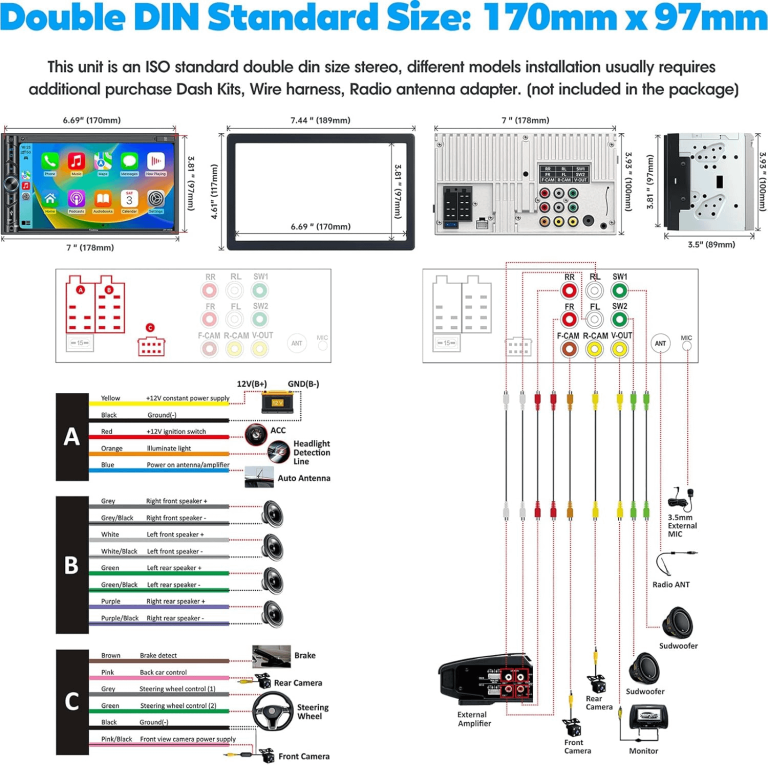

Common Acc Wire Colors

Knowing the common colors of ACC wires can save you time and confusion during installation. Most car manufacturers use similar color codes, but always double-check with your vehicle’s manual.

• Red:This is the most common color for the ACC wire in aftermarket car stereos.
• Orange:Sometimes used as the accessory wire, especially in factory wiring harnesses.
• Yellow:Usually reserved for constant 12V power, not ACC, so be careful not to mix these up.

Connecting the ACC wire to the wrong color can cause your stereo to behave erratically. Double-checking wire colors with a multimeter or wiring diagram is a smart move before you make any connections.

Credit: www.reddit.com

Locating The Acc Wire In Your Car

Finding the Acc wire in your car is crucial for installing a stereo. This wire powers the stereo only when the ignition is on. Identifying it correctly avoids battery drain and ensures proper functioning. The Acc wire typically carries 12 volts when the key turns to the accessory position. It remains off when the engine is off. Knowing its location simplifies the connection process.

Using A Multimeter

A multimeter helps find the Acc wire by measuring voltage. Set the multimeter to DC voltage mode. Turn the car key to the accessory position without starting the engine. Probe wires behind the stereo or near the fuse box. The Acc wire shows about 12 volts in this position. When the key is off, the voltage drops to zero. Mark this wire for your stereo connection.

Consulting Car Wiring Diagrams

Car wiring diagrams show the exact location of the Acc wire. These diagrams are available in the car’s manual or online. Search by your car’s make, model, and year for accuracy. The diagram uses color codes and labels for wires. Look for labels like “ACC,” “Accessory,” or “Ignition.” Use the diagram to trace the wire in the car’s wiring harness. This method reduces guesswork and speeds up the process.

Tools Needed For Connection

Connecting the ACC wire in your car stereo requires the right set of tools to ensure a secure and efficient installation. Having these tools ready saves you time and prevents common mistakes that could damage your stereo or car’s electrical system. Let’s look at what you’ll need and how to handle them safely.

Essential Tools List

• Wire Strippers:These help you remove the insulation from the wire without cutting the copper inside.
• Multimeter:Use this to check voltage and confirm you’ve identified the ACC wire correctly.
• Screwdrivers:Both flathead and Phillips types are often needed to remove panels or loosen screws.
• Electrical Tape or Heat Shrink Tubing:To insulate your wire connections and prevent shorts.
• Crimping Tool or Soldering Kit:For creating strong, reliable wire connections.
• Wire Connectors or Butt Connectors:These help join wires securely without splicing.

Having these tools on hand will make the process smoother and more professional. What’s your go-to tool when working on car electronics?

Safety Precautions

Safety is crucial when working with your car’s electrical system. Always disconnect the negative terminal of your car battery before starting to avoid any electrical shorts or shocks.

Wear gloves and safety glasses to protect your hands and eyes from sharp wires or sparks. Avoid working near fuel lines or any flammable materials.

Double-check your connections with a multimeter before powering up the stereo. Have you ever skipped a safety step and wished you hadn’t? Taking precautions can save you time and expensive repairs.

Credit: www.reddit.com

Step-by-step Connection Process

Connecting the ACC wire in a car stereo requires care and precision. This wire powers the stereo only when the ignition is on. Proper connection ensures the stereo works correctly without draining the battery. Follow the steps below to connect the ACC wire safely and efficiently.

Preparing The Acc Wire

Start by identifying the ACC wire in your stereo harness. It usually has a red color, but check the manual to confirm. Strip about half an inch of insulation from the wire end. Use a wire stripper for a clean cut. Avoid damaging the wire strands inside. Twist the strands gently to keep them together.

Finding The Right Connection Point

Locate the car’s ACC wire in the wiring harness. This wire is live only when the ignition is on. Use a multimeter to test for voltage. Turn the ignition key to the accessory position and check the wire voltage. The correct wire shows 12 volts only in this position. Avoid wires that are always live or off.

Securing The Connection

Connect the stereo ACC wire to the car’s ACC wire. Use a crimp connector or solder the wires together. Crimp connectors provide a strong hold and are easy to use. Cover the connection with electrical tape or heat shrink tubing. Ensure no exposed wire is visible. This prevents shorts and corrosion. Finally, tuck the wires neatly to avoid damage.

Testing The Connection

Testing the ACC wire connection in your car stereo is a crucial step to ensure everything works safely and smoothly. It helps you confirm that the stereo powers on only when the ignition is on, preventing battery drain. Skipping this step can lead to frustrating issues or even damage to your car’s electrical system.

Powering On The Stereo

Start by turning your car key to the accessory or ignition position. This should send power to the ACC wire and, in turn, to the stereo. If connected properly, your stereo will light up or display a startup screen immediately.

If the stereo doesn’t turn on, double-check that the ACC wire is securely connected to the right wire in your car’s wiring harness. Using a multimeter to test voltage can quickly tell you if power is reaching the stereo through the ACC wire.

Troubleshooting Common Issues

Sometimes the stereo won’t power on even if the ACC wire looks connected. Check for these common problems:

• Loose connection:Wiggle the wires gently. A loose ACC wire might cause intermittent power.
• Wrong wire:Verify that you connected to the ignition or accessory wire, not a constant power wire.
• Blown fuse:Inspect the fuse related to the ACC circuit in your car’s fuse box.

If you find the stereo powers on but stays on after the car is off, the ACC wire might be connected to a constant power source. This mistake drains your battery quickly and needs fixing immediately.

Have you ever tested your ACC wire and found unexpected results? Sometimes the car’s wiring colors don’t match the manual, so testing with a multimeter before making connections saves time and headaches.

Credit: www.reddit.com

Tips For A Clean Installation

Keeping your car stereo wiring neat is more than just about looks—it affects safety and performance too. A clean installation prevents shorts, makes future troubleshooting easier, and protects your investment in quality sound. Let’s look at some practical tips to keep your ACC wire and other connections tidy and secure.

Wire Management

Organize your wires to avoid tangling and damage. Use zip ties or Velcro straps to bundle wires together, but don’t overtighten them—this can damage the insulation.

Run wires along existing harnesses or edges to keep them out of the way. Think about how you’ll access these wires later; leave some slack for adjustments or repairs.

Have you checked if any wires are rubbing against sharp edges? Adding a protective sleeve or rerouting can prevent wear and shorts over time.

Using Connectors And Insulation

Choose the right connectors for your ACC wire to ensure a solid electrical connection. Crimp connectors provide a stable hold, but soldering can offer even better conductivity and reliability if you’re comfortable with it.

Always cover exposed wires with heat shrink tubing or electrical tape. This prevents accidental shorts and protects against moisture and dirt.

Have you tested your connections before finalizing the installation? A multimeter can help you verify continuity and correct polarity, avoiding future headaches.

Frequently Asked Questions

What Is An Acc Wire In Car Stereo?

The ACC wire is the accessory wire in a car stereo. It connects the stereo to the ignition switch. This allows the stereo to turn on and off with the car’s ignition. Proper connection is crucial for preventing battery drain when the car is off.

Where To Connect The Acc Wire?

Connect the ACC wire to the ignition switch’s accessory terminal. This ensures the stereo powers on with the ignition. It’s vital for preventing the stereo from draining the battery when the car is off. Always use a multimeter to identify the correct terminal.

Can I Connect Acc Wire Directly To Battery?

Connecting the ACC wire directly to the battery isn’t recommended. It can cause the stereo to stay on constantly. This leads to draining the car battery. Instead, connect it to the ignition switch accessory terminal for proper operation.

What Happens If Acc Wire Is Not Connected?

If the ACC wire isn’t connected, the stereo won’t turn on with ignition. It can also lead to battery drainage if misconnected. Properly connecting it ensures the stereo functions correctly with the car’s ignition cycle. Always double-check connections for optimal performance.

Conclusion

Connecting the ACC wire correctly keeps your car stereo working right. Find the ACC wire near the ignition switch or fuse box. Double-check the wire color and use a tester for safety. A good connection stops power problems and protects your stereo.

Take your time and follow simple steps carefully. This small task helps your music play without interruptions. Now, enjoy your drives with clear, steady sound from your stereo.
